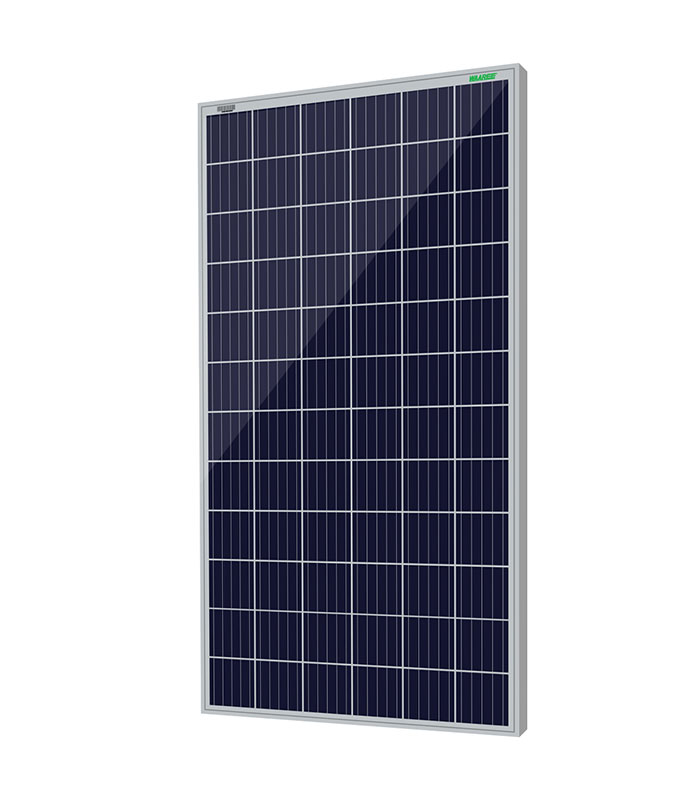

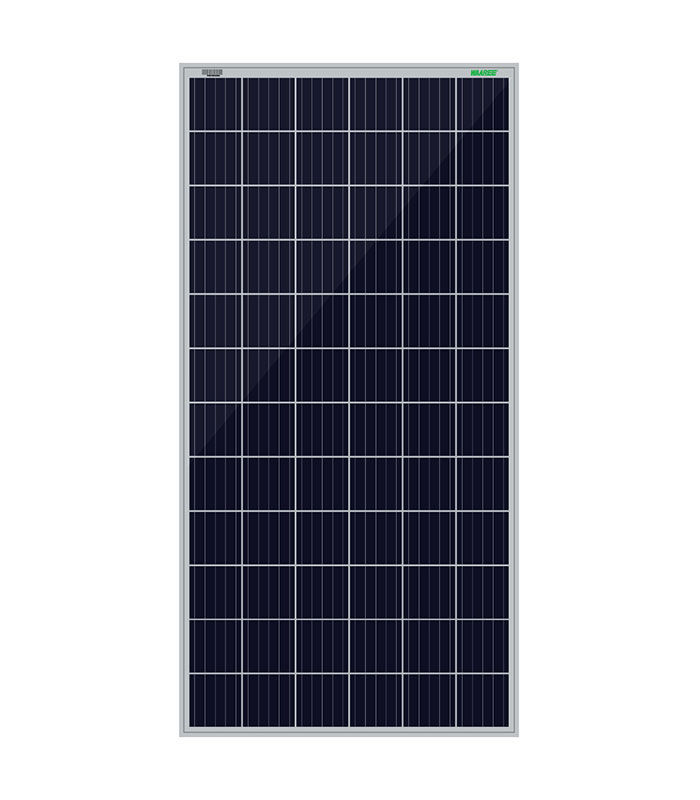

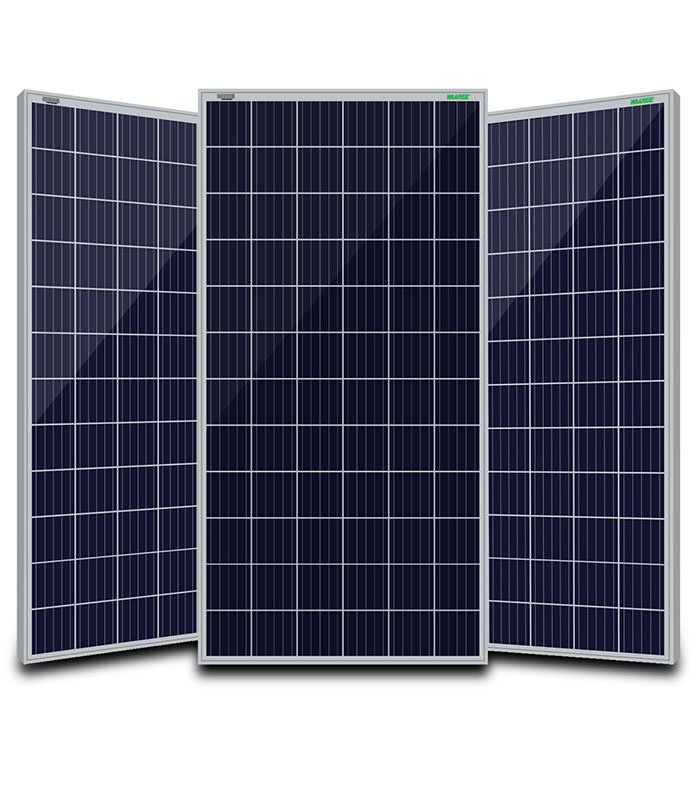

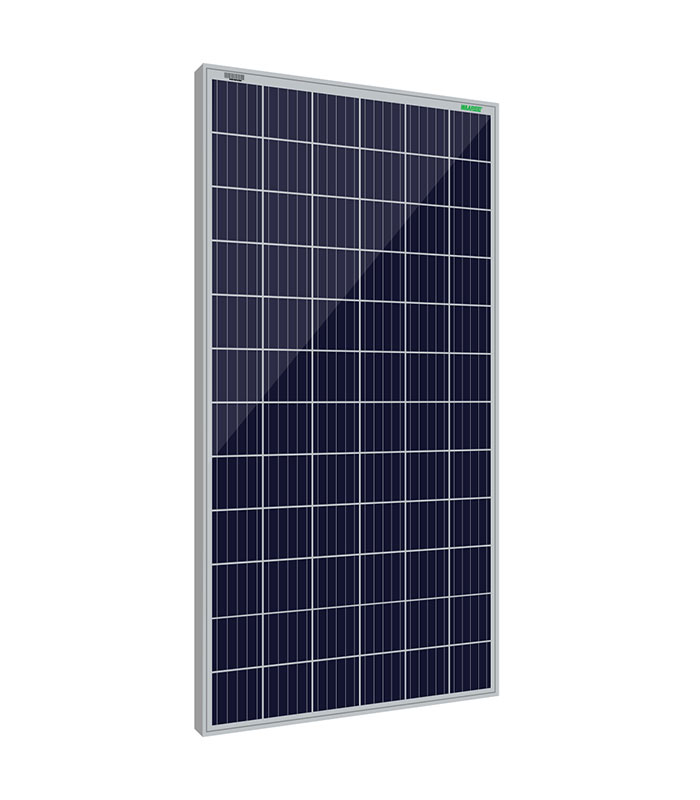

Solar Panel WS-320Wp to WS-350Wp
Glass with anti-reflective coating improve light transmission
1500 VDC system voltage for lower BoS cost
Salt mist, Ammonia and Hail Resistant
PID Resistant with long term reliability
Sustain Heavy Wind & Snow loads (2400 Pa & 5400 Pa)
Features (Solar panel)
Cell
- 72 (12X6) Poly crystalline silicon cell of 157 X 157 mm size
- Higher power output & lower BOS cost
- Minimised micro-cracks
Frame
- 40 mm anodized aluminium alloy: Robust protection
- Reserved mounting holes: Easy installation

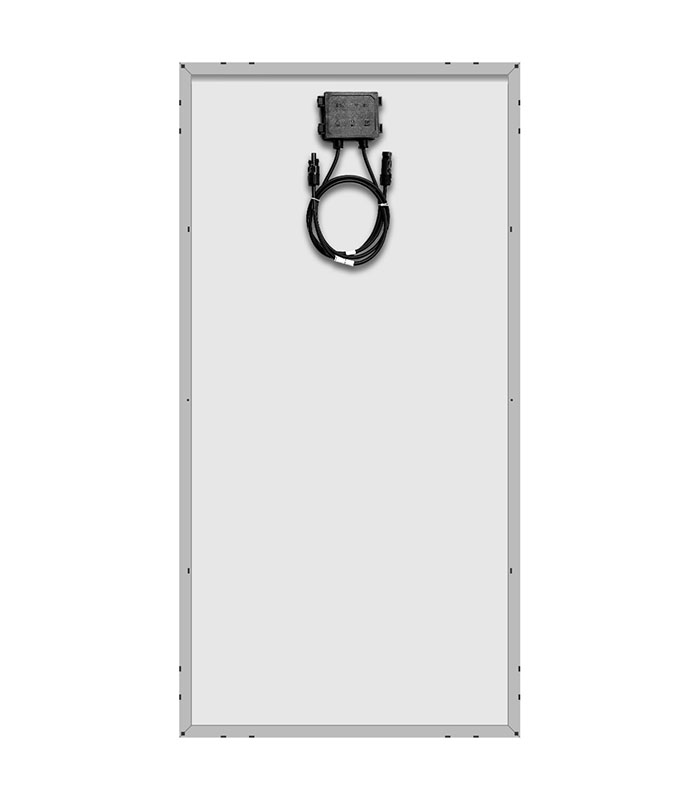

Junction Box
- IP68 / Weatherproof PPO
- Better heat dissipation, higher safety
Cable
- Optimized cable length: Simplified wire fix
- Reduced energy loss in cable
Glass
- 3.2 mm Low Iron and Tempered glass with ARC coating solar panel
