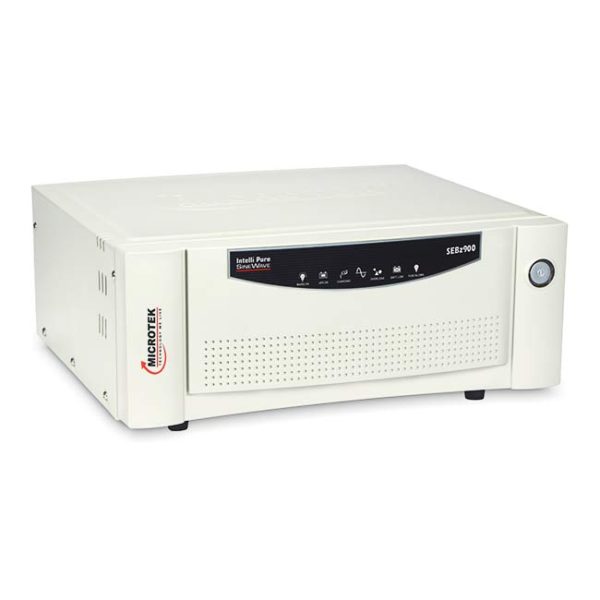

Microtek UPS SEBz 900

MICROTEK UPS SEBz Series is Micro Controller design based, LARGEST SELLING SERIES of Extended Backup External Battery UPS Systems. It comes with many user-friendly features. It has Voltage Range Selection Switch and can be operated in Standard Voltage Range from 100V~300V and Narrow Voltage Range from 180V~260V.
UPS SEBz Series Models are based on Intelli Pure Sinewave Technology which ensures Noiseless, Safe and Efficient Performance along with Longer Backup.

Weight – 9.700kg

Dimensions (L W H) – 384x375x194

Categories: ,
  • Description

    Product Description

    More then 6 times better

    Intelli Power Saving Technology

    Auto Restart

    Circuit Breaker

    All MICROTEK UPS SEBz Series Models are based on IPS Technology and Saves Electricity so that every UPS become free in 3 Years.

    Rated Capacity 800 VA
    Output Power 672 Watts
    Battery 1 Battery System (12 VDC)
    Waveform Pure Sinewave
    Warranty 2 Years

    Key features

    • Micro Controller Based Intelligent Control Design.
    • LED Display Indications (Status & Fault)
    • CCCV Technology with Auto Trickle Mode
    • Smart Overload Sense and Short Circuit Protection
    • Battery State Monitoring
    • Multi Stage Battery Charger
    • Mains Input Voltage Range Slide Selection Switch

    Display

    • MAINS ON
    • UPS ON
    • BATTERY CHARGING
    • OVERLOAD
    • BATTERY LOW
    • FAULT INDICATION

    Protections

    • Over Load/Short Circuit Protection: If the UPS is excessively Overloaded in UPS Mode or encounters a Short Circuit, it will go into Protection Mode. The Output will Shut Down in this case.
    • Battery Deep Discharge/Over Charge Protection: The UPS has In-built Electronic Protection Circuit that protects the Batteries from getting Deep Discharged or Over Charged.
    WEIGHT 9.700 kg
    WEIGHT 9.700kg
    DIMENSIONS (L W H)
    INPUT
    Input Voltage (Standard range) 100 V ~ 300 V
    Input Voltage (Narrow range) 180V ~ 260 V
    OUTPUT
    Output Voltage (Mains Mode) Same as Input
    Output Voltage (UPS Mode) 200V~ 230V ± 10%
    Output Waveform (Mains Mode) Same as Input
    Output Waveform (UPS Mode) Pure Sinewave
    CHANGEOVER
    Switchover from Mains to UPS and UPS to Mains Automatic
    UPS Transfer Time ≤ 15 msec.
    TECHNOLOGY
    Design Micro Controller Based Design with IPS Technology
    Battery Charging Current Constant Charging approx. 10% of the rated Battery Current in AH
    UPS Overload / UPS Short-circuit 110% / 300%
    Browns on Mains Voltage 100V ± 40V
    Efficiency (Battery Mode) > 80%
    Auto Reset Feature Yes
    Input DC Range 10.5 V  ~ 14.2 V
    Charging Current (Standard) 10 Amps ± 1 Amps
    Charging Current (High) 14 Amps ± 1 Amps
