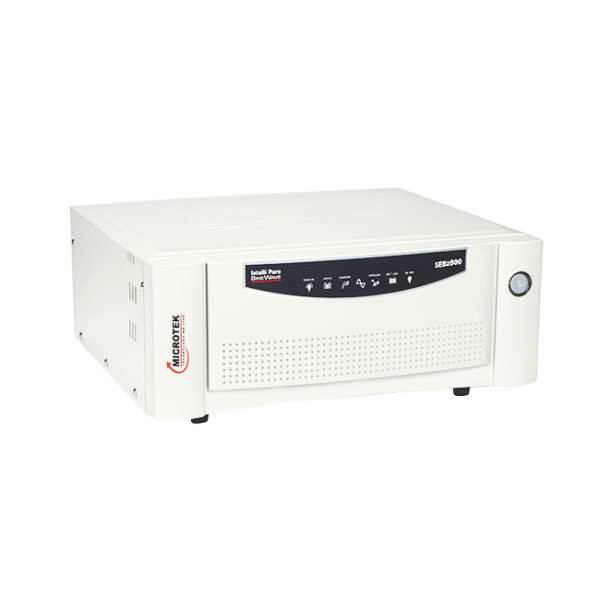

Microtek UPS SEBz 800

MICROTEK UPS SEBz Series is Micro Controller design based , LARGEST SELLING SERIES of Extend-ed Backup External Battery UPS Systems. It comes with many user friendly features. It has Voltage Range Selection Switch and can be operated in Standard Voltage Range from 100V~300V and Narrow Voltage Range from 180V~260V.
UPS SEBz Series Models are based on Intelli Pure Sinewave Technology which ensures Noiseless,Safe and Efficient Performance along with Longer Backup

Categories: ,
  • Description

    Product Description

    All MICROTEK UPS SEBz Series Models are based on IPS Technology and Saves Electricity so that every UPS become free in 3 Years.

    Rated Capacity 700 VA
    Output Power 588 Watts
    Battery 1 Battery System (12 VDC)
    Waveform Pure Sinewave
    Warranty 2 Years

    Key features

    • Micro Controller Based Intelligent Control Design.
    • LED Display Indications (Status & Fault)
    • CCCV Technology with Auto Trickle Mode
    • Smart Overload Sense and Short Circuit Protection
    • Battery State Monitoring
    • Multi-Stage Battery Charger
    • Mains Input Voltage Range Slide Selection Switch

    Protections

    • Over Load/Short Circuit Protection: If the UPS is excessively Overloaded in UPS Mode or encounters a Short Circuit, it will go into Protection Mode. The Output will Shut Down in this case.
    • Battery Deep Discharge/Over Charge Protection: The UPS has In-built Electronic Protection Circuit that protects the Batteries from getting Deep Discharged or Over Charged.
    INPUT
    Input Voltage (Standard range) 100 V ~ 300 V
    Input Voltage (Narrow range) 180V ~ 260 V
    OUTPUT
    Output Voltage (Mains Mode) Same as Input
    Output Voltage (UPS Mode) 200V~ 230V ± 10%
    Output Waveform (Mains Mode) Same as Input
    Output Waveform (UPS Mode) Pure Sinewave
    CHANGEOVER
    Switchover from Mains to UPS and UPS to Mains Automatic
    UPS Transfer Time ≤ 15 msec.
    TECHNOLOGY
    Design Micro Controller Based Design with IPS Technology
    Battery Charging Current Constant Charging approx. 10% of the rated Battery Current in AH
    UPS Overload / UPS Short-circuit 110% / 300%
    Browns on Mains Voltage 100V ± 40V
    Efficiency (Battery Mode) > 80%
    Auto Reset Feature Yes
    Input DC Range 10.5 V  ~ 14.2 V
    Charging Current (Standard) 10 Amps ± 1 Amps
    Charging Current (High) 14 Amps ± 1 Amps
