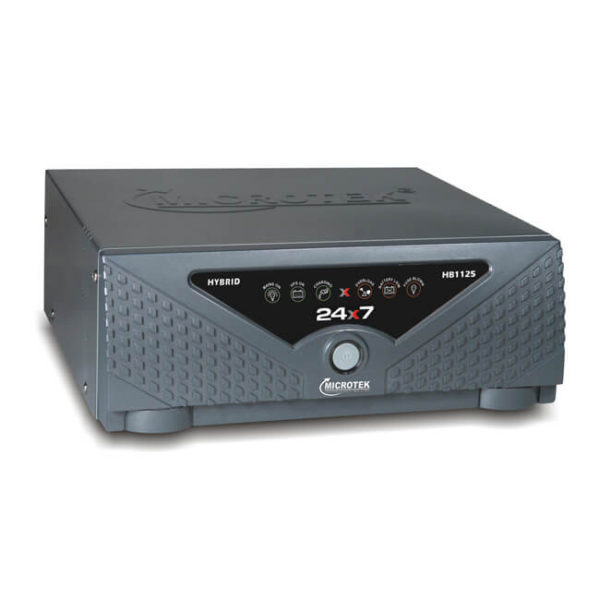

Microtek UPS 24×7 HB 1125

Microtek Gen-Next range of UPS 24×7 are based on HYBRID Technology, which is a Perfect Combination of Digital & Sinewave technologies which ensures Noiseless Performance, Quick Charging, More Load, Longer Battery Life and Longer Backups.

Weight – 11.365kg

Dimensions (L W H) – 384x375x194

Categories: ,
  • Description

    Product Description

    It is a Premium Product that comes with Multiple Features such as In-Built Bypass Switch and IBGM (Intelli Battery Gravity Management) Technology.

    It has Battery type Selection Switch for Tubular and Flat Plate Battery type and also Voltage Range Selection Switch.

    All Microtek UPS 24×7 Series Models are based on IPS Technology and Saves Electricity so that every UPS 24×7 becomes free in 3 Years.

    Rated Capacity 1125 VA
    Output Power 900 Watts
    Battery 1 Battery System (12 VDC)
    Waveform Pure Sinewave
    Warranty 2 Years
    WEIGHT 11.365 kg
    WEIGHT 11.365kg
    DIMENSIONS (L W H)

    Key features

    • Hybrid Technology for Noiseless and Better Performance with Longer Backups & Battery Life.
    • Battery Charging Current Selection Switch with Standard (10 Amps) & Fast Charging (14 Amps) Mode.
    • IBGM Technology – Increases Battery Life and Performance by maintaining correct Battery Gravity.
    • PWM Controlled Multistage ATM (Automatic Trickle Mode) Charging.

    Display

    • MAINS ON
    • UPS ON
    • BATTERY CHARGING
    • OVERLOAD
    • BATTERY LOW
    • FAULT INDICATION

    Additional feature

    • Bypass Switch           – In case of UPS failure, Electricity will be Bypassed
    • Current Selection Switch (Standard/High) – Yes
    INPUT
    Input Voltage (Standard range) 90 V ~ 300 V
    Input Voltage (Narrow range) 180V ~ 260 V
    OUTPUT
    Output Voltage (Mains Mode) Same as Input
    Output Voltage (UPS Mode) 200V~ 230V ± 10%
    Output Waveform (Mains Mode) Same as Input
    Output Waveform (UPS Mode) Pure Sinewave
    CHANGEOVER
    Switchover from Mains to UPS and UPS to Mains Automatic
    UPS Transfer Time ≤ 15 msec.
    TECHNOLOGY
    Design Micro Controller Based Design
    Battery Charging Current 10% of the rated Battery Current in AH
    UPS Overload / UPS Short-circuit 110% / 300%
    Browns on Mains Voltage 100V ± 40V
    Efficiency (Battery Mode) > 80%
    Auto Reset Feature Yes
    Input DC Range 10.5 V  ~ 14.2 V
    Charging Current (Standard) 10 Amps ± 1 Amps
    Charging Current (High) 14 Amps ± 1 Amps
