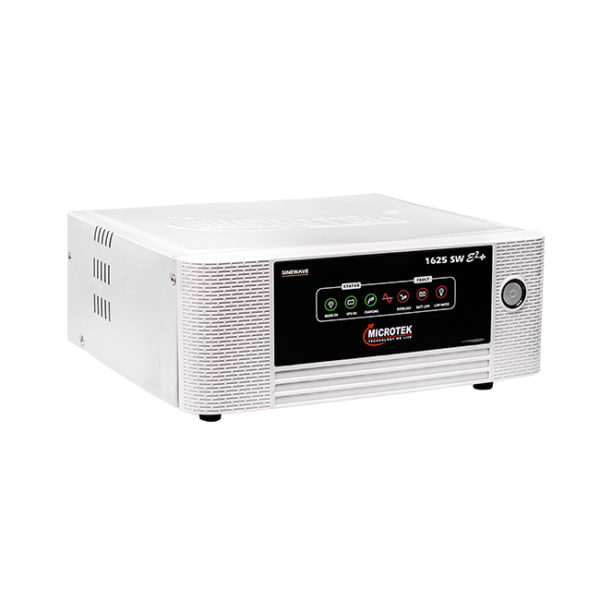

Microtek Sinewave UPS SWE²+ 1625

MICROTEK UPS SW E²+ Series is Micro Controller design based, LARGEST SELLING SERIES of Extended Backup External Battery UPS Systems. It comes with many user friendly features. It has Voltage Range Selection Switch and can be operated in Standard Voltage Range from 100V~300V and Narrow Voltage Range from 180V~260V.

Weight – 17.200kg

Dimensions (L W H) – 415x425x214

Categories: ,
  • Description

    Product Description

    UPS SW E²+ Series Models are based on Intelli Pure Sinewave Technology which ensures Noiseless, Safe and Efficient Performance along with Longer Backup.

    All MICROTEK UPS SW E²+ Series Models are based on IPS Technology and Saves Electricity so that every UPS SW E²+ becomes free in 3 Years.

    Rated Capacity 1625 VA
    Output Power 1300 Watts
    Battery 2 Battery System (24 VDC)
    Waveform Pure Sinewave
    Warranty 2 Years

    Key features

    • Micro Controller Based Intelligent Control Design.
    • LED Display Indications for UPS Status and Fault
    • CCCV Technology with Auto Trickle Mode
    • Smart Overload Sense and Short Circuit Protection
    • Battery State Monitoring
    • Multi Stage Battery Charger
    • Mains Input Voltage Range Slide Selection Switch

    Display

    • MAINS ON
    • UPS ON
    • BATTERY CHARGING
    • OVERLOAD
    • BATTERY LOW
    • FAULT INDICATION

    Additional feature

    In case when water level is low in battery, then Low Water Red LED Glows on the front panel of UPS.

    WEIGHT 17.200 kg
    WEIGHT 17.200kg
    DIMENSIONS (L W H)
    INPUT
    Input Voltage (Standard range) 100 V ~ 300 V
    Input Voltage (Narrow range) 180V ~ 260 V
    OUTPUT
    Output Voltage (Mains Mode) Same as Input
    Output Voltage (UPS Mode) 200V~ 230V ± 10%
    Output Waveform (Mains Mode) Same as Input
    Output Waveform (UPS Mode) Pure Sinewave
    CHANGEOVER
    Switchover from Mains to UPS and UPS to Mains Automatic
    UPS Transfer Time ≤ 15 msec.
    TECHNOLOGY
    Design Micro Controller Based Design
    Battery Charging Current 10% of the rated Battery Current in AH
    UPS Overload / UPS Short-circuit 110% / 300%
    Browns on Mains Voltage 100V ± 40V
    Efficiency (Battery Mode) > 80%
    Auto Reset Feature Yes
    Input DC Range 21 V  ~ 28.4 V
    Charging Current (Standard) 10 Amps ± 1 Amps
    Charging Current (High) 13 Amps ± 1 Amps
