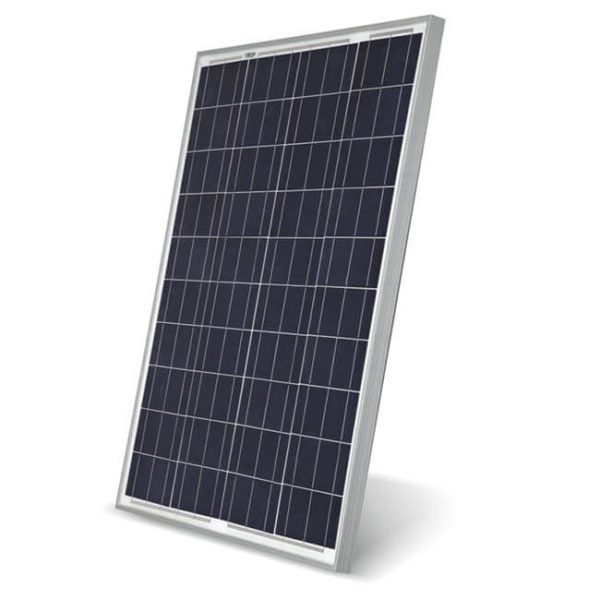

Microtek PV Module 260W
SKU:PV Module 260WCategory: PV Modules
-
Description
Product Description
Product Description
- Positive Power Tolerance Modules.
- Highly Classified A-Grade Solar Cells for Lesser Degradation and High Energy.
- Micro Crack Free Panels-100% EL Tested Before and After Lamination.
- High Conversion Efficiency based on Leading Innovative Photo Voltaic Technologies.
- PID Free Modules with Long Term Reliability.
- Anti-Reflective Coating Glass Available.
- Advance IP67/IP68 Junction Box for long-term weather endurance.
- RFID Tag Available.
- Sustain Heavy Wind and Snow Loads (2400Pa and 5400Pa).
- Excellent Performance in Low Light.
- Salt Mist, Ammonia, Blowing Sand and Hail Resistant.
- Ideal for Off-Grid as well as On-Grid Applications.
- IP67 rated MC4 Compatible Connectors.
- EVA Encapsulation and Anti Reflection Coating for better Module Protection.
- Undergoes Rigorous Quality Control and more than 20 in-house tests, (DH: Damp Heat Test. TC: Thermal Cycling Test. HF: Humidity Freeze Test.).
- Heavy duty Anodized Aluminum Frames with pre-drilled holes for Quick Installation.
- Manufactured with Premium Quality Input Materials.
GENERAL INFO Length x Width x Thickness (LxWxT) – mm 1639x991x35/40 Mounting Holes Pitch (Y) – mm 980 Mounting Holes Pitch (X) – mm 951 Solar Cells per Module (Units) / Arrangement 60 / (10 x 6) Solar Cell Type Multi Crystalline Silicon Front Cover (Material / Thickness) Tempered & Low Iron Glass / 3.2mm Encapsulate Ethylene Vinyl Acetate Frame Material Anodized Aluminum Alloy Junction Box IP67/IP68 Enclosure with Bypass Diodes NOTE: Because of a policy of continuous product improvement, the Specifications are subject to change without prior notice.
TECHNICAL INFO Nominal Maximum Power (Pm) 260Watts/24V Open Circuit Voltage (Voc) 37.60V Short Circuit Current (Isc) 8.88A Voltage at Maximum Power (Vmp) 31.00V Current at Maximum Power (Imp) 8.40A Maximum System Voltage 1000V -
