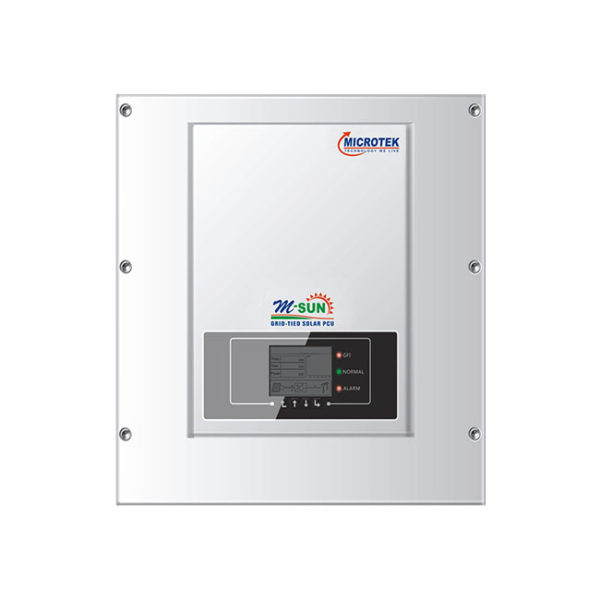

Microtek M-SUN SOLAR GRID-TIED SYSTEM GT 20KW
Microtek M-SUN SOLAR GRID-TIED SYSTEM is a system with Grid-Tie functionality.
MPPT Based Technology Grid Tie Wall mounted Solar System that converts Solar Energy into Electricity.
Excess Generation of Electricity from Solar Panel will be exported to Utility Grid if there is active Net Metering Policy in State.
-
Description
Product Description
Model MICROTEK PCU GT20KW Key features
- Max 98.2% Efficiency, Real Time Precise MPPT algorithm for BEST Performance.
- Plug & Play Easy Installation & Maintenance, IP65 for Free Site Selection.
- Big Size LCD Display, Interface Selection, RS485 for System Monitoring.
- Intelligent Grid Management, Reactive Power Capability & Self Power Reducer when Over Frequency. Remote Active/Reactive Power Limit Control.
- SD Card inside for Data Storage upto 25 Years.
INPUT (DC) Max.Input Power/Number of MPPT 20800W/2MPPT Max.Input Voltage/Start-up I/P Voltage/Rated I/P Voltage 1000V/350/600V MPPT Voltage Range 250V~960V Full Load DC Voltage Range/Max.Input Current per MPPT 430V~850V/24A OUTPUT(AC) Rated Power/Max.AC Power/Max.AC Output Current 20000VA/20000VA/29A Per Phase Nominal Grid Voltage/Grid Voltage Range 3/N/PE,220/380V or 3/N/PE,230/400 or 3/N/PE,240/415V Nominal Frequency/Grid Frequency Range Nominal:50Hz/60Hz,Grid:47~53Hz/57~63Hz (According to Local Standard) THDi/Power Factor/Grid Connection <3%/1(Adjustable±0.8)/Three Phase Power Limit Export Zero Export or Adjustable Power Limit Export (Optional) EFFICIENCY Max.Efficiency 98.20% MPPT Efficiency >99.9% PROTECTIONS DC Reverse Polarity Protection,DC Switch,Protection Class/Overvoltage Category:(I/III),Inut/Output SPD(II):Optional,Anti-islanding,RCMU,Ground Fault Monitoring. Degree of Protection IP65 Topology Transformerless COMMUNICATION Standard Communication Mode/Operation Data Storage RS485,Wi-Fi(Optional), GPRS(Optional),SD Card,Multi-function relay AMBIENCE PARAMETERS Operating Temperature -25 ͦC ~+60 ͦC/ Acoustic Noise : <45dB Allowable Relative Humidity range : 0 to Max 95% no condensing, Max.Operating Altitude:2000m DIMENSIONS(LxWxH)in mm 707x492x240 WEIGHT 48 Kgs -
