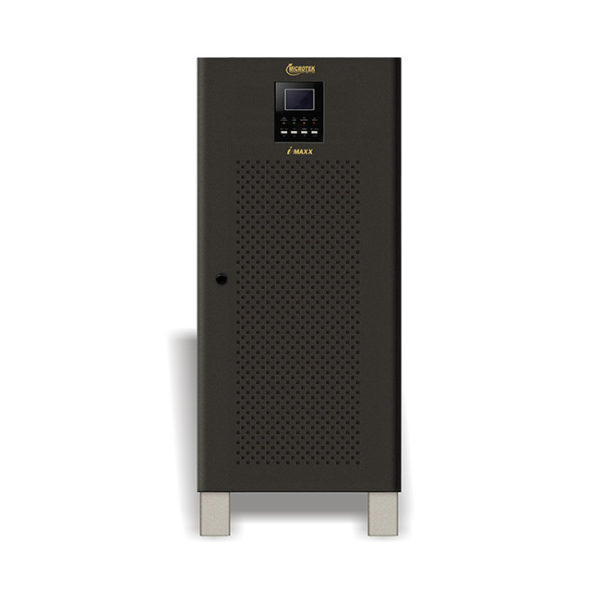

Microtek i-MAXX 10KVA (3-1)

Microtek i-MAXX 10KVA (3-1)

Categories: ,
  • Description

    Product Description

    Description

    • Online Double-Conversion.
    • DSP Technology guarantees High Reliability.
    • True Galvanic Isolation Transformer design.
    • Control designed to withstand all kinds of loads.
    • Independent Ventilation enhance durable operation under harsh environment.
    • Accept Dual-Mains Input.
    • Reverse Phase sequence & no neutral operation.

    All Microtek Product Ranges are specially designed for the User’s Benefit.

    MODEL i-MAXX DSP BASED TECHNOLOGY ONLINE UPS SERIES
    Capacity 10KVA/8KW
    Phase Three Phase In / Single Phase Out
    DC VOLTAGE SYSTEM 192VDC
    INPUT
    Nominal Voltage 3 x 360VAC/ 380VAC/ 400VAC (3Ph+N+G)
    Acceptable Voltage Range 286VAC ~ 493VAC
    Frequency Range 40Hz ~ 55Hz
    EFFICIENCY
    Overall Efficiency (AC Mode) 83%
    Efficiency (Battery Mode) 92%
    BATTERY & CHARGER
    Battery Type/Battery Numbers SMF/Lead Acid/Tubular /16 Nos.
    Charging Current Default 8A, 2A/4A/8A (Adjustable)
    STATIC BYPASS
    Overload/Short-Circuit Capability 150% for 1 hour ; 180% for 30 sec ; >200% for 200 ms
    Connection Type/Input Voltage Range Hardwire 3-wire (1Ph+N+G) / 220VAC
    PHYSICAL
    Dimension LxWxH(mm)/Net Weight(Kgs.) 562x300x830 / 115Kgs.
    ENVIRONMENT
    Operating Temp./Humidity/Noise Level Temp.:0 ~ 55 ͦC / Humidity: 0 ~ 90% (non-condensing) / Less than 60dBA @ 1 Meter
    OUTPUT
    Nominal Voltage Default = 230Vac +/- 1%, 208VAC/220VAC/ 230VAC (Adjustable)
    Waveform Pure Sinewave
    Frequency Range (Synchonized mains Mode) 45Hz ~ 55Hz
    Frequency Range (Battery Mode) 50Hz +/- 0.1Hz
    Power Factor / Crest Factor 0.8 / 3:1
    Total Harmonic Distortion ≤ 3% (Linear Load)/ ≤ 5% (Non-Linear Load)
    Transfer Time (AC to DC) 0 ms
    Transfer Time (Inverter to Bypass) 0 ms
    Overload Capability 110% for 30 Min, 125% for 5 Min & 150% for 1 Sec
    MANAGEMENT
    USB and Modbus RS-232/RS485 Supports Windows 2000/2003/XP/Vista/2008/7/8/10,Linux and MAC
    Dry Contacts / SNMP (Optional) 5 signals : AC Failure, Low Battery,UPS Alarm, Bypass and UPS Fault / Power management from SNMP manager and web browser (Optional)
