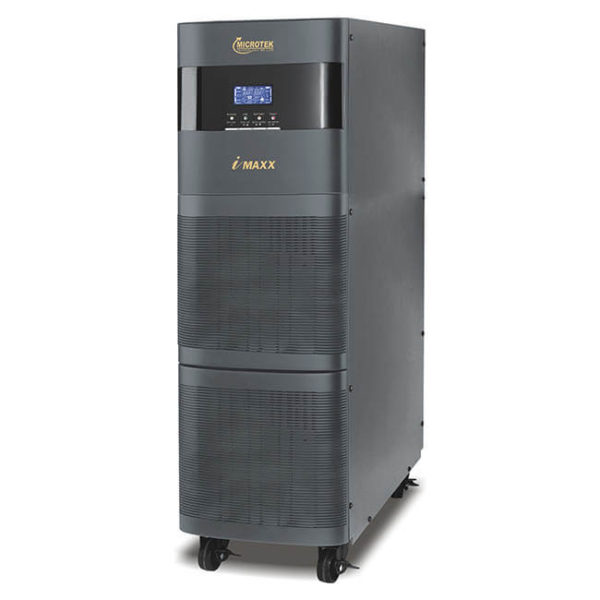

Microtek i-MAXX 10KVA

Microtek i-MAXX 10KVA

Microtek Low Frequency Online UPS provides Uninterrupted Pure Power for Critical Applications such as Computer Network, Servers, Cyber Cafes, ATM Machine, Labs etc.
These Products are manufactured in State-of-the-art automatic Manufacturing Plants equipped with Hi- Tech Machines in India.
Some of the important machines are SMT, ICT and Automatic Assembly Lines etc.
Microtek has won many Awards and recognition for its commitment to the industry.

Categories: ,
  • Description

    Product Description

    All Microtek Product Ranges are specially designed for the User’s Benefit.

    MODEL i-MAXX 10KVA/192V
    Phase Single Phase with Ground
    Capacity 10KVA /8KW

    NOTE: Product Specifications are subject to change without prior notice.

    INPUT
    Nominal Voltage 208VAC/220VAC/230VAC
    Acceptable Voltage Range 165 ~285 VAC
    Frequency 40 Hz~55Hz @ 50 Hz system
    EFFICIENCY
    AC Mode 87.00%
    Battery Mode 91%
    EXTERNAL BATTERY
    Recommended Battery Type DEFAULT : VRLA / SMF BATTERY                                                                                             TUBULAR BATTERY   : OK                                                                                                                      (WITH CHARGER CUT-OFF VOLT ADJUSTABLE FROM LCD DISPLAY)
    Numbers 16
    Charging Current (Max.) Default: 8A±10%; Max: 2A, 4A, 8A (Adjustable)
    Charging Voltage (Default) Boost Voltage :  224Vdc +-1%,  14.0V/Battery
    Float Voltage :  217.6Vdc +- 1%,   13.6V/Battery
    INDICATORS
    LCD Load Level, Battery Level, AC Mode, Battery Mode, Bypass Mode, and Fault Indicators
    ALARM
    Battery Mode Sounding every 4 seconds
    Low Battery Sounding every second
    Overload Sounding twice every second
    Fault Continuously sounding
    PHYSICAL
    Dimension, DxWxH(mm) 562 x 250 x 830
    Net Weight (kgs) 86
    OUTPUT
    Nominal Voltage 208VAC/220VAC/230VAC
    Voltage Regulation ± 1 %
    Frequency Range (Synchronized Range) (Mains Mode) 45Hz~55Hz
    Frequency Range (Battery Mode) 50 Hz ± 0.1 Hz
    Overload Specs (Mains Mode) 110%- 120%   : 30 MIN
    120% – 130%   : 5MIN
    >130%    : 1 SEC
    Overload Specs (Battery Mode) 110% – 120%    : 3 MIN
    120% – 130%   : 1 MIN
    > 130%     : 1 SEC
    Current Crest Ratio 3 : 1
    Harmonic Distortion ≦ 3 % THD (Linear Load)
    ≦ 5% THD (Non-Linear Load)
    Transfer Time AC to DC Zero
    Inverter to Bypass Zero (Turn OFF / Common Fault)
    Bypass to Inverter < 5ms (Turn ON/ System Recovery)
    Waveform (Battery  Mode) Pure Sine wave
    ENVIRONMENT
    Operating Temperature 0~50ºC (Battery life cycle will shorten when temperature is above 25ºC)
    Humidity 0~95% (Non-Condensing)
    Noise Level Less than 50dB @ 1 Meter
    MANAGEMENT
    Modbus RS-232/RS485 Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC
    Dry Contact 5 Signals: AC Failure, Low Battery, UPS Alarm, Bypass and UPS Fault
    Optional SNMP Power Management from SNMP Manager and Web Browser
    Warranty One Year
