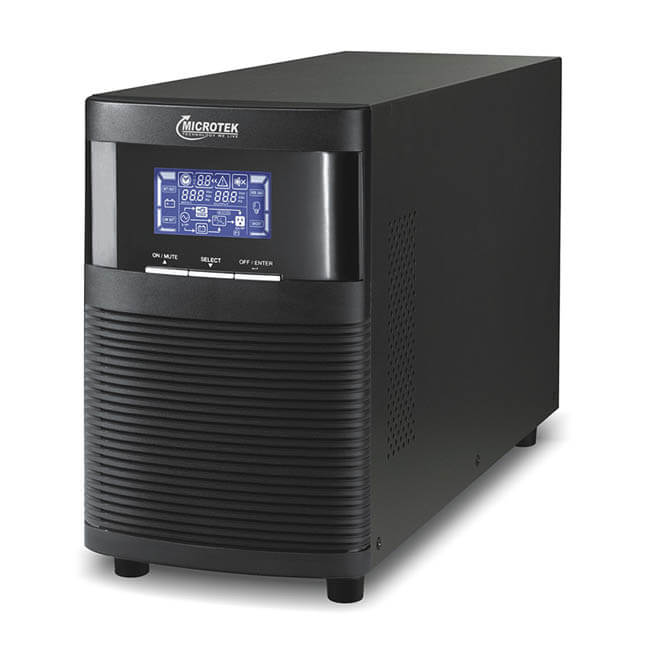

Microtek E2 SERIES 1KVA

Microtek E2 SERIES 1KVA

(1 customer review)

Microtek High Frequency Online UPS provides Uninterrupted Pure Power for Critical Applications such as Computer Network, Servers, Cyber Cafes, etc.
These Products are manufactured in State-of-the-art automatic Manufacturing Plants equipped with Hi- Tech Machines in India.
Some of the important machines are SMT, ICT and Automatic Assembly Lines etc.
Microtek has won many Awards and recognition for its commitment to the industry.

Categories: ,
  • Description

    Product Description

    All Microtek Product Ranges are specially designed for the User’s Benefit.

    Model E² Series
    Rated Capacity 1 KVA / 800 Watts

    Key Features

    • High Frequency and Hybrid Double Conversion Online Technology.
    • High End IGBT Based.
    • High End Micro Controller Based.
    • Wide Input Voltage Range
    • Advanced PFC Technology
    • Advanced Battery Management
    • Automatic Battery Charging in UPS Off Mode
    • Short Circuit and Overload Protection
    • Smart RS232 Communication with monitoring software
    • SNMP Card Slot (Optional)
    • Over Temperature Protection.
    • EMI / RFI Noise Filter
    • LCD/LED Display simultaneously
    • Specially designed to suit Indian Power and Environment Conditions
    • Generator Compatible (Supplying Sinewave Voltage)
    • Isolation Transformer (Optional)
    • Different Output Voltage settings.
    • Output Frequency fixed at 50Hz or can be synchronized with Input Frequency.
    • Static Bypass Enable or Disable.
    • Outlets Programmable and Non Programmable.
    • Protection from DC Fan failure.
    • In-built Over Voltage Cut-Off Device.

    Warranty      One Year

    NOTE: Product Specifications are subject to change without prior Notice.

    BATTERY
    DC Voltage 36 V
    Charge Current 6.5 A
    INPUT
    Input Voltage Range (Load < 50%) 118 ~ 295 V (± 5 V)
    Input Voltage range ((Load > 50%)) 160 ~ 295 V (± 5 V)
    Frequency 40 ~ 70 Hz
    Phase Single Phase with Ground
    Power Factor ≥ 0.99 @ full load
    Communication Interface RS232,SNMP (Optional)
    Indication LCD Display
    Noise Level Less than 50dBA @ 1 Meter (With Fan Speed Control)
    UPS Overload / UPS Short-Circuit 110% / 300%
    OUTPUT
    Voltage Range 208 / 220 / 230 / 240 V AC
    Frequency Range (Synchronized Range) 47 ~ 53 Hz or 57 ~ 63 Hz
    Frequency Range (Battery Mode) 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
    THD (Linear Load) ≤ 2%
    THD (Non Linear Load) ≤ 4%
    Overload > 110%, 30s turn to Bypass Mode> 150% instant turn to Bypass
    Crest Factor 3:1 (Max)
    Short Circuit Protection 5 cycles turn Off Inverter, no transfer to Bypass, provide Alarm (AC Mode), 5 cycles turn Off Inverter, provide Alarm(Battery Mode), Input Fuse blown or Breaker action
    Waveform Pure Sinewave
    Transfer Time(AC Mode to Battery Mode)
    (Inverter to Bypass Mode)    		 Zero< 4 ms
    Efficiency 85%~ 92%
