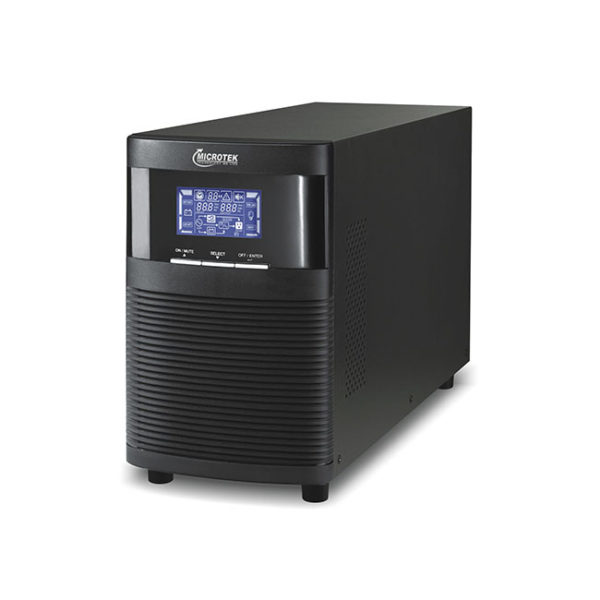

Microtek E2-IB SERIES 1KVA

Microtek E2-IB SERIES 1KVA

Microtek High Frequency Online UPS provides Uninterrupted Pure Power for Critical Applications such as Computer Network, Servers, Cyber Cafes, ATM Machines and CCTV Camera etc.

Categories: ,
  • Description

    Product Description

    Product Description

    Model Name Online UPS E²-IB
    Rated Capacity 1 KVA / 800 Watts
    Phase Single Phase In, Single Phase Out

    Key Features

    • High Frequency Double-Conversion Online Technology.
    • IGBT and Micro Controller Based.
    • Rugged Product-improves Power Quality and Reliability.
    • Generator Compatible.
    • Advanced PFC Technology.
    • Static Bypass-improves Reliability.
    • OVCD Protection-Saves Online UPS & Connected Load from High Voltage.
    • Ferrite Rings-Reduces EMI Noise which interfere with Machine Load.
    • LCD Display.

    Warranty      One Year

    NOTE: Product Specifications are subject to change without prior Notice.

    MODEL NAME & NUMBER ONLINE UPS E²-IB/ NM24EM1KK11-IB
    CAPACITY 1KVA/800W
    DC VOLTAGE SYSTEM 24VDC
    BATTERY
    Type & Numbers SMF 12V / 9AH x 2 Nos. (IN-BUILT BATTERIES)
    Charge Current 1A
    INPUT
    Voltage Range 110VAC ± 5 % ~ 300 VAC ± 5 %
    Frequency Range 40Hz ~ 70 Hz
    Phase Single phase with ground
    Power Factor ≥ 0.99 @ full load
    TRANSFER TIME
    AC Mode to Batt. Mode Zero
    Inverter to Bypass < 4 ms (typical 2.5ms)
    Waveform (Batt. Mode) Pure Sinewave
    Efficiency(AC Mode/Batt.Mode) 88% / 86%
    PHYSICAL
    Dimension(LxWx H) in mm 282x145x220
    Net Weight (Kgs.) 9.8 Kgs.
    MANAGEMENT
    Smart RS-232 or USB Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux, Unix and MAC
    Optional SNMP Power management from SNMP manager and web browser
    OUTPUT
    Voltage Range 200/208/220/230/240VAC
    AC Voltage Regulation ± 1% (Batt. Mode)
    Frequency Range (Battery Mode) 50 Hz ± 0.25 Hz or 60Hz ± 0.3 Hz
    Current Crest Ratio 3:1
    Harmonic Distortion ≤ 2 % THD (Linear Load) ; 4 % THD (Non-linear Load)
    Capability Overload 105% ~ 110%: UPS shuts down after 10 minutes at battery mode or transfer to bypass when the utility is normal. 110% ~ 130% : UPS shuts down after 1 minute at battery mode or transfer to bypass when the utility is normal. >130%: UPS shuts down after 3 seconds at battery mode or transfer to bypass when the utility is normal.
    ENVIRONMENT
    Operation Humidity 20-95 % RH @ 0- 40°C (non-condensing)
    Noise Level Less than 50dBA @ 1 Meter (With fan speed control)
    LED/LCD Indication LCD Display Indications
