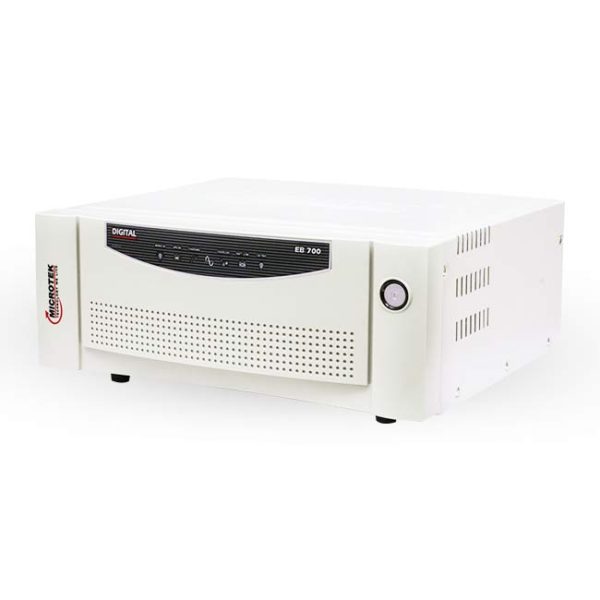

Microtek Digital UPS EB 700
MICROTEK UPS EB Series is Micro Controller design based , LARGEST SELLING SERIES of Extended Backup External Battery UPS Systems. It comes with many user friendly features. It has Voltage Range Selection Switch and can be operated in Standard Voltage Range from 100V~300V and Narrow Voltage Range from 180V~260V.
Weight – 9.200kg
Dimensions (L W H) – 382x340x198
-
Description
Product Description
All MICROTEK UPS EB SERIES MODELS are based on IPS Technology and Saves Electricity so that every UPS become free in 3 Years.
Rated Capacity 600 VA Output Power 510 Watts Battery 1 Battery System (12V) Wave form TPZi Waveform (Trape Zoidal) Warranty 2 Years Key features
- Micro controlled based Intelligent Control Design.
- Display Indications (Status & Fault)
- CCCV Technology with Auto Trickle Mode
- SmartOverload Sense and Short Circuit Protection
- Battery State Monitoring
- Multi Stage Battery Charger
- Mains Input Voltage Range Selection
WEIGHT 9.200 kg WEIGHT 9.200kg DIMENSIONS (L W H) 382x340x198 INPUT Input Voltage (standard range) 100 V ~ 300 V Input Voltage (Narrow range) 180V ~ 260 V OUTPUT Output Voltage (Mains Mode) Same as Input Output Voltage (UPS Mode) 200V~ 230V ± 10% Output Wave form (Mains Mode) Same as Input Output Wave form (UPS Mode) TPZi Wave form (Trape Zoidal waveform) CHANGEOVER Switchover from Mains to UPS and UPS to Mains Automatic UPS Transfer Time ≤ 15 msec. TECHNOLOGY Design Micro Controller Based design with IPS Technology Battery Charging current Constant charging Approx. 10% of the rated battery current in AH UPS Overload / UPS Short-circuit 110% / 300% Browns on Mains voltage 100V ± 40V Efficiency (battery mode) > 84% Auto Reset Feature Yes Input DC Range 10.5 Amps ~ 14.2 Amps Charging Current 10 Amps ± 1 Amps -
