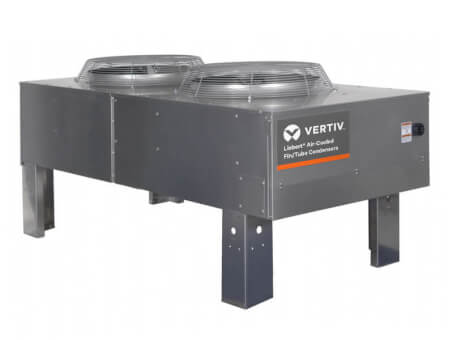

Liebert Fin/Tube Outdoor Condenser

The Liebert Fin easy-to-Install and service air-cooled condensers for outdoor heat rejection are precisely matched to the requirements of Liebert data center cooling and fluid chiller systems.

The Liebert Fin is a low-profile, direct-drive propeller fan-type air-cooled unit suitable for mounting outdoors. It provides for the heat rejection of either one or two separate refrigeration circuits, matching heat rejection capacity varying with the outdoor ambient temperatures and with each corresponding compressors heat rejection requirements. Constructed with an aluminum cabinet and acopper-tube aluminum fin coil, the unit is quiet and corrosion resistant. The condenser is quickly and easily installed because all internal wiring is completed at the factory with only electrical connections to be made at the job site. All electrical connections and controls are enclosed in an integral weatherproof section of the condenser.

Best Suited For:

  • Banking
  •  Financial and Insurance
  • Government
  • Healthcare
  • Retail and Wholesale
Liebert Fin/Tube Outdoor Condenser

Benefits

  • Energy savings through variable frequency drives
  • Operate at outdoor temperatures as low as -20°F (-28.9°C)
  • Meet the strictest municipal noise codes
  • Allows faster and efficient plan approval and building inspection with CSA agency approval.

Features

  •  Low-profile, direct-drive, propeller fan type air-cooled condensers
  • Liebert Quiet-Line outdoor condensers operate at less than 57 dBA (decibel-audio)
  • Liebert TCDV Condensers use variable frequency drives
  • Delivered fully wired, piped and tested.
  • Designed for use with dual refrigeration circuit cooling systems, including those with digital scroll compressors
  • Durable construction with a corrosion-resistant aluminum cabinet, copper-tube aluminum-fin coil, and galvanized steel internal frame

Standard Feature

Liebert condensers consist of condenser coil(s), housing, propeller fan(s) direct-driven by individual fan motor(s), electrical controls and mounting legs. Liebert air-cooled condensers provide positive refrigerant head pressure control to the Precision Cooling indoor unit by adjusting heat rejection capacity. Various methods are employed to match indoor unit type, minimum outdoor design ambient and maximum sound requirement

Condenser Coil

Liebert-manufactured coils are constructed of copper tubes in a staggered tube pattern. Tubes are expanded into continuous, corrugated aluminum fins. The fins have full-depth fin collars completely covering the copper tubes, which are connected to heavy wall Type “L” headers. Inlet coil connector tubes pass through relieved holes in the tube sheet for maximum resistance to piping strain and vibration.
